Interlock Stainless Steel Flexible Conduits
High-quality stainless steel flexible conduits with interlock structure for enhanced durability and strength. Available in various specifications from 4.0mm to 51.0mm inner diameter. Provides superior protection against electrical sparks, hot metal debris, and chemical corrosion.
Request a QuoteProduct Specifications
| Type | Inch | I.D. (mm) | O.D. (mm) | O.D.+PVC (mm) | Packing (M) |
|---|---|---|---|---|---|
| S040070C2S1 | - | 4.0 | 6.0 | 7.0 | 100 |
| S046080C2S1 | - | 4.6 | 6.6 | 8.0 | 100 |
| S050080C2S1 | - | 5.0 | 7.0 | 8.0 | 100 |
| S054095C2S1 | - | 5.4 | 7.8 | 9.5 | 100 |
| S059100C2S1 | - | 5.9 | 8.4 | 10.0 | 100 |
| S066100C2S1 | - | 6.6 | 9.0 | 10.0 | 100 |
| S095150C2S1 | 1/4 | 9.5 | 12.0 | 15.0 | 50 |
| S100150C2S1 | 3/8 | 10.0 | 12.5 | 15.0 | 50 |
| S125177C2S1 | 1/2 | 12.7 | 15.5 | 17.7 | 50 |
| S161213C2S1 | - | 16.1 | 19.5 | 21.3 | 50 |
| S191245C2S1 | - | 19.1 | 22.2 | 24.5 | 50 |
| S208267C2S1 | 3/4 | 20.8 | 24.3 | 26.7 | 40 |
| S220280C2S1 | - | 22.0 | 25.7 | 28.0 | 40 |
| S260300C2S1 | 1 | 26.0 | 30.0 | 33.0 | 30 |
| S340390C2S1 | 1-1/4 | 34.0 | 39.0 | 42.2 | 30 |
| S390440C2S1 | 1-1/2 | 39.0 | 44.0 | 47.8 | 20 |
| S510560C2S1 | 2 | 51.0 | 56.0 | 59.4 | 10 |
Five Major Product Categories
Stainless Steel Material
High-quality stainless steel construction for superior durability and corrosion resistance
Complete Range of Specifications
Available in various sizes and specifications to meet diverse application requirements

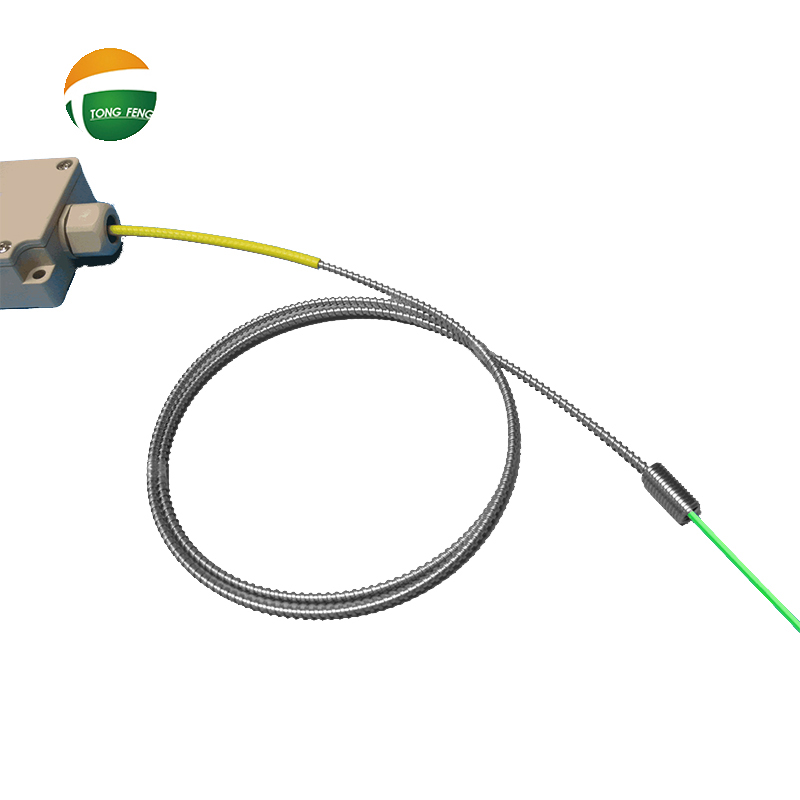

Excellent Flexibility
Superior flexibility allowing easy bending and routing without deformation

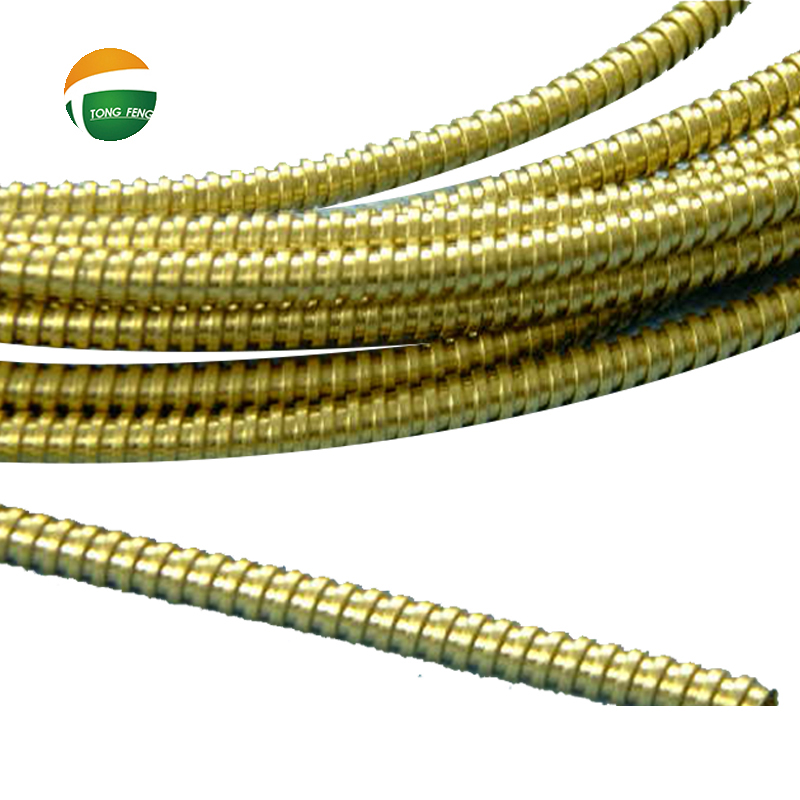

Wear Resistance
High resistance to wear and tear ensuring long-lasting performance in demanding environments
Solid Structure & Stable Performance
Robust construction with stable performance characteristics for reliable operation
Key Features
Electrical Protection
Protects cables from electrical sparks and electromagnetic interference
Heat Resistance
Withstands high temperatures and hot metal debris
Chemical Resistance
Resistant to chemical corrosion and environmental factors
Flexible Design
Easy installation and routing in complex environments
